Garmin GPSMAP 8616xsv Marine Chartplotter with CHIRP Sonar and Navionics+ Mapping

Introduction

The Garmin GPSMAP 8616xsv combines integrated chartplotting and sonar technology in a 16-inch touchscreen unit built for commercial and recreational mariners who demand real-time underwater visibility and precision navigation. This chartplotter delivers CHIRP sonar scanning capability down to 1,000 feet with ClearVü and SideVü imaging, preloaded Garmin Navionics+ maps, and seamless NMEA 2000 networking for multi-device integration. Whether fishing, racing, cruising, or navigating complex waterways, the 8616xsv provides the situational awareness serious water operators require.

Key Features

• 16-inch Full HD IPS touchscreen with 1920 x 1200 resolution and polarized sunglasses compatibility
• CHIRP Traditional, ClearVü, and SideVü sonar with scanning depths up to 1,000 feet
• 40% improved target separation over standard sonar for precise fish and structure detection
• Preloaded Garmin Navionics+ maps with daily updates via 1-year subscription included
• Auto Guidance+ route optimization and SailAssist race-start guidance with tide and current overlays
• NMEA 2000 and NMEA 0183 compatibility for integrated marine networks

Data Insights

The 8616xsv's sonar suite achieves industry-leading target separation, enabling anglers and operators to distinguish individual fish and bottom composition with greater precision than conventional single-frequency systems. Real-time ClearVü scanning produces forward-looking sonar imagery while SideVü captures lateral views beneath the hull, creating comprehensive underwater awareness. Map updates maintain accuracy with daily refresh cycles, critical for navigation in areas with shifting bottom topography or updated navigational hazards.

Usage Instructions

Power on the unit and follow the on-screen calibration wizard to configure sonar transducers and map datum settings. Access SailAssist tools and Auto Guidance+ features through the main menu for guided navigation or racing functionality. Connect additional marine devices via NMEA 2000 network ports to share data across your vessel's electronics suite. Update maps regularly through the built-in subscription service to maintain current chart accuracy and route optimization performance.

Design & Material

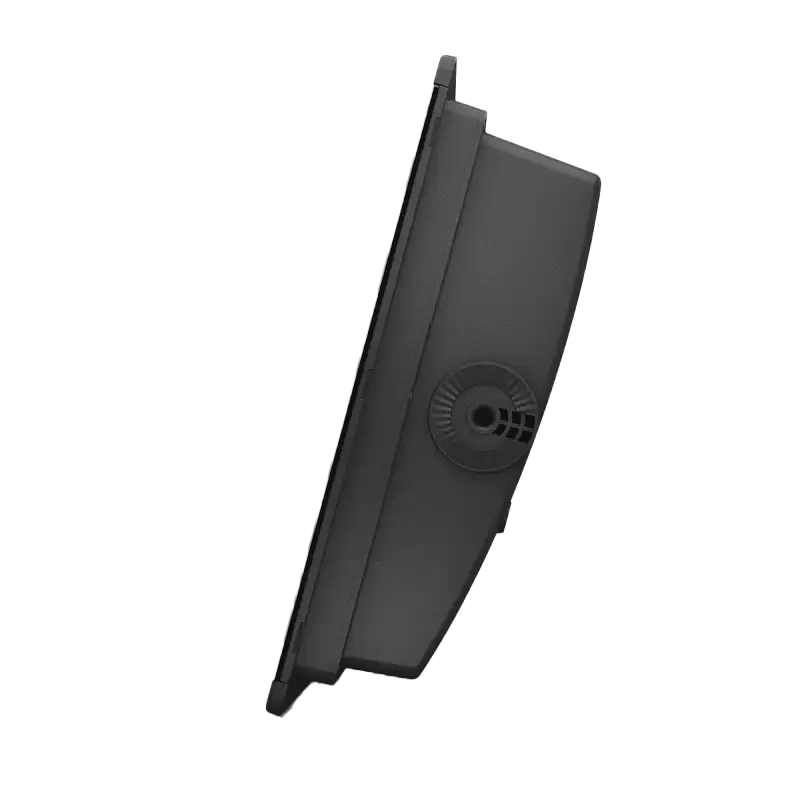

The GPSMAP 8616xsv is engineered as a purpose-built marine display with marine-grade construction and intuitive ergonomics designed for operation in saltwater and freshwater environments. The unit supports both edge-to-edge and flush-mount installation, adapting to various console layouts without compromising durability or aesthetics.

• Marine-grade housing rated for saltwater splash exposure and UV resistance
• Edge-to-edge bezel design minimizes reflections and maximizes viewing area
• Water-resistant construction meets marine electronics environmental standards

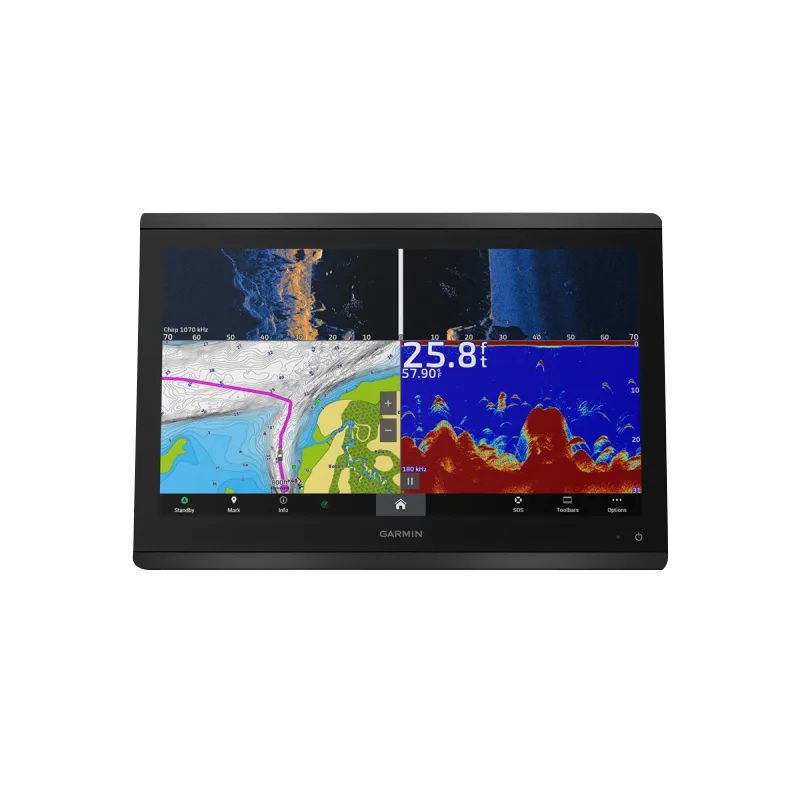

• Customizable screen layouts with user-selectable data windows for sonar, navigation, and autopilot control
• Compact footprint designed for mounting in tight console spaces without excessive weight
• Tactile touchscreen responsive in wet conditions and gloved operation

Final Verdict

The Garmin GPSMAP 8616xsv is the integrated sonar and chartplotting solution for operators who depend on accurate underwater imaging and navigation data. With 1,000-foot sonar depth, real-time map updates, and racing-optimized navigation tools, this model eliminates the need for separate devices while providing the visual clarity and accuracy that distinguish professional-grade systems from entry-level units. Install the 8616xsv today to transform your vessel's situational awareness and operational efficiency on the water.
